ROPP CAPS

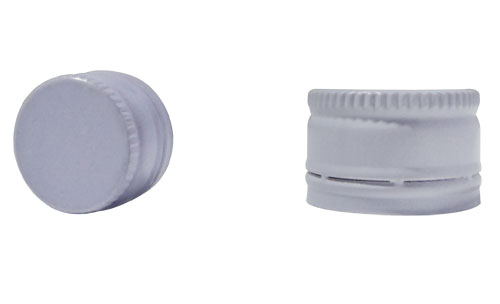

cap1

Size : 22 mm

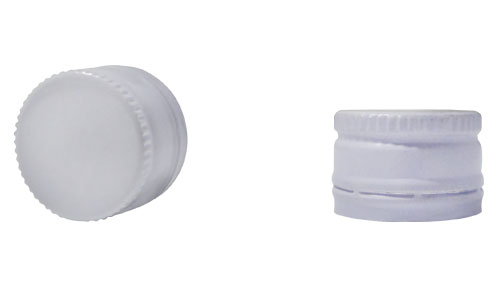

cap2

Size : 25 mm

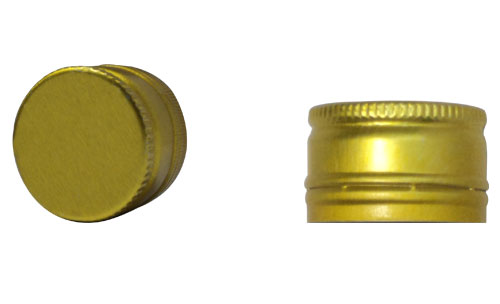

cap3

Size : 28 mm

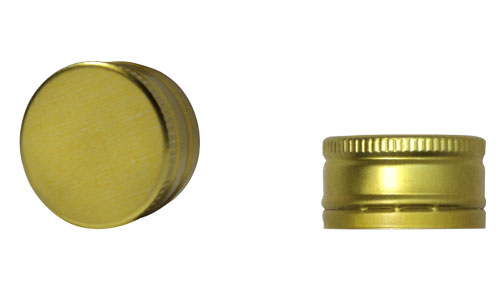

cap4

Size : 31.5 mm

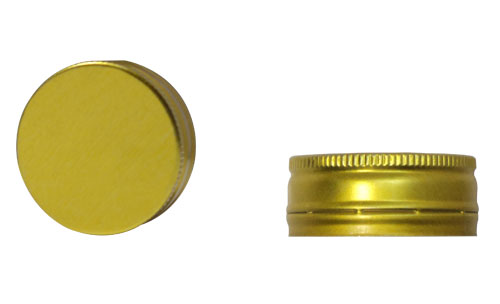

cap5

Size : 38 mm

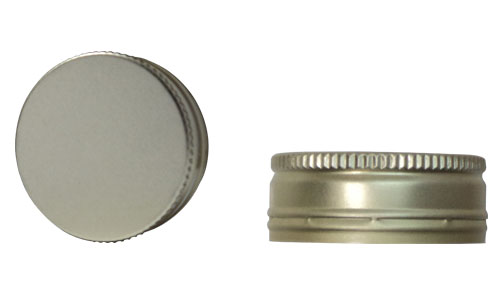

cap6

Size : 46 mm

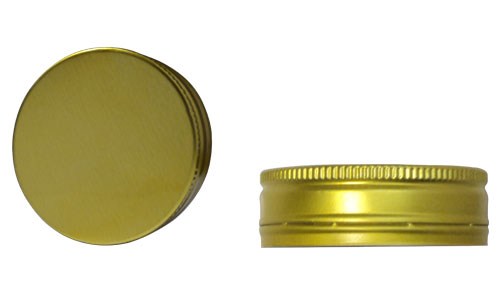

cap7

Size : 53 mm

LINER

cap12

cap11

« prev | next »

We can provide ROPP in all kinds of LDPE Plugs.(Low-density polyethylene)

We can provide ROPP Caps in all kinds of Wads like EPE Liners/Wads, SBR Wads, Latex Rubber Wads, PVC Coated Rubber Wads ,Cork Wads, Board Wads, Etc.

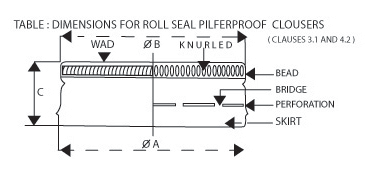

Size mm: 22

ID (A) Max: 22.5

ID (A) Min: 22.1

OD (B) Max: 22.9

OD (B) Min: 22.5

Height ( C ) Max: 15.5

Height ( C ) Min:14.7

Packing Qty Per Carton (Pcs)10000

Size mm: 25

ID (A) Max:25.5

ID (A) Min: 25.1

OD (B) Max: 26.1

OD (B) Min: 25.7

Height ( C ) Max: 16.9

Height ( C ) Min:16.1

Packing Qty Per Carton (Pcs)7000

Size mm: 28

ID (A) Max:28.4

ID (A) Min: 28.1

OD (B) Max: 28.8

OD (B) Min: 28.4

Height ( C ) Max: 18.3

Height ( C ) Min:17.5

Packing Qty Per Carton (Pcs)5500

Size mm: 31.5

ID (A) Max:31.5

ID (A) Min: 31.1

OD (B) Max: 31.9

OD (B) Min:31.5

Height ( C ) Max: 18.3

Height ( C ) Min:17.5

Packing Qty Per Carton (Pcs)4500

Size mm: 38

ID (A) Max:38.5

ID (A) Min: 38

OD (B) Max: 39

OD (B) Min: 38.5

Height ( C ) Max: 16.5

Height ( C ) Min:15.7

Packing Qty Per Carton (Pcs)3000

Size mm: 46

ID (A) Max:46.2

ID (A) Min: 45.7

OD (B) Max: 46.7

OD (B) Min: 46.2

Height ( C ) Max: 16.6

Height ( C ) Min:15.8

Packing Qty Per Carton (Pcs)1500

Size mm: 53

ID (A) Max:53.8

ID (A) Min: 53.3

OD (B) Max: 54.3

OD (B) Min: 53.8

Height ( C ) Max: 18.7

Height ( C ) Min:17.9

Packing Qty Per Carton (Pcs)1500
